Inside the Airbus A380: Components, Systems & Engineering

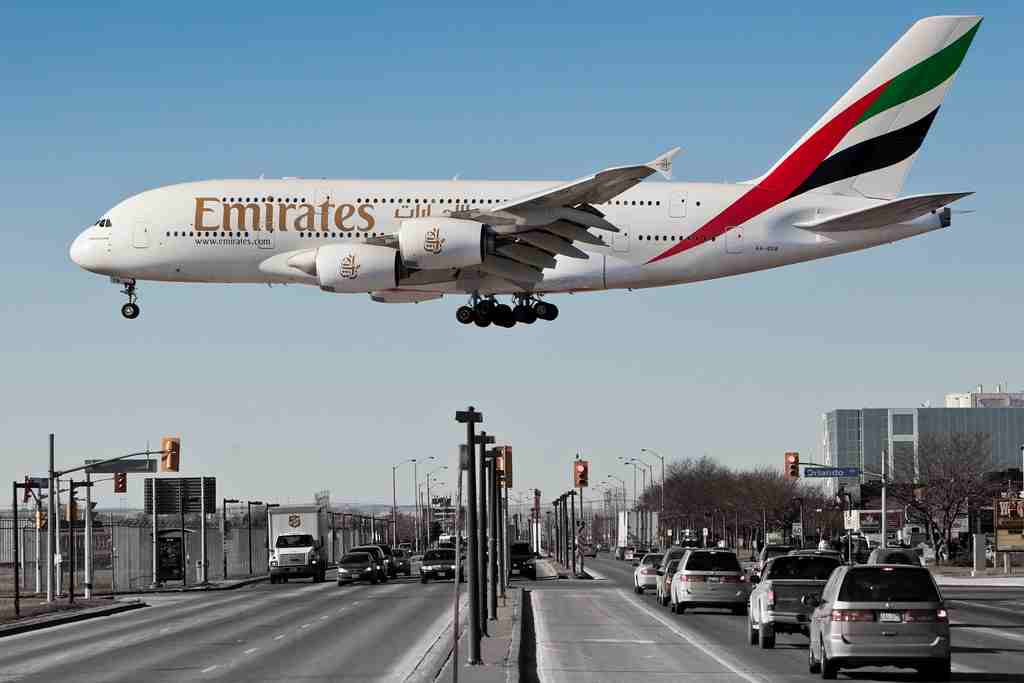

Commercial aviation relies on some of the most complex mechanical engineering and automated networks in the world. To understand how modern passenger jets function, it is highly useful to analyze the components of a prominent engineering model. The Airbus A380, the world’s largest passenger aircraft, serves as an excellent blueprint. Let us break down the internal anatomy, fluid mechanics, emergency power backups, and avionics suites that keep this double-decker superjumbo operating safely across global routes.

Baseline Specifications and Flight Metrics

The pure scale of the Airbus A380 requires massive structural strength and highly optimized engine parameters to take off safely at maximum capacity:

• Maximum Takeoff Weight (MTOW): A fully loaded A380 weighs approximately 1,265,000 pounds (lb), a mass roughly equivalent to 165 mature elephants.
• Cruise Velocity: The aircraft maintains a maximum operating speed of approximately 1,185 kilometers per hour (km/h).
• Flight Range Capacity: The platform is engineered to complete long-haul transcontinental routes extending up to 15,200 kilometers on a single fueling lifecycle.

Primary and Emergency Power Infrastructure

Modern commercial aircraft rely on multiple redundant power systems to generate the forward thrust and electrical energy needed to keep vital flight electronics running continuously.

The Main Turbofan Engines

The A380 uses four massive turbofan engines. Each individual engine produces up to 40.5 tons of thrust, generating the equivalent of more than 75,000 horsepower, pushing the aircraft's combined maximum thrust to 165 tons.

The primary titanium fan blades spin at nearly 3,000 RPM, drawing in over 1.25 tons of air every single second. At peak velocity, the outer tips of these titanium fan blades travel at 1.5 times the speed of sound. This immense air induction burns roughly $29,000 worth of jet fuel per hour during cruise phases.

The Auxiliary Power Unit (APU)

Tucked away safely inside the structural tail cone assembly is a small, self-contained jet engine known as the **Auxiliary Power Unit (APU)**. Under normal operations, electrical power is fed to the cabin networks by generators attached to the four main engines.

However, if the primary generators suffer a dual system dropout, the APU acts as an immediate emergency electrical backup. On the ground, the APU’s primary function is to provide high-pressure bleed air to crank and start the main engines while running the aircraft’s environmental control and cabin air-conditioning systems.

The Ram Air Turbine (RAT)

For absolute catastrophic redundancy, aircraft incorporate a **Ram Air Turbine (RAT)**. This is a small, deployable wind turbine tucked inside the fuselage underbed. If the aircraft suffers a complete loss of both primary engine power and the auxiliary tail generator, the RAT drops down automatically into the passing airstream.

Driven by the speed of the aircraft, the rushing air spins the turbine to generate 5 to 70 kilowatts of emergency electricity. This emergency power drives localized hydraulic pumps, keeping flight-critical instrumentation, primary flight surfaces, and essential navigation systems fully responsive.

Fuselage Deck Layout and Environmental Fluid Tanks

The double-deck fuselage is divided into a Main Deck and an Upper Deck, with the flight deck (cockpit) located on the forward section of the main deck. In a standard high-density configuration, the aircraft accommodates up to 853 passengers—seating 538 travelers on the spacious main deck and 315 on the upper level.

To support large passenger loads over long flight distances, the aircraft's lower cargo hold houses massive environmental fluid management tanks:

• Potable Water Tanks: Eight clean-water storage units are positioned near the center of gravity along the wing roots (four tanks per side), holding a combined 2,270 liters of fresh water for passenger use.
• Waste Management Tanks: Four isolated waste tanks are grouped together in the lower aft section, providing a total capacity of 2,096 liters to collect wastewater from the galleys and lavatory vacuum systems.

High-Pressure Hydraulic Distribution Systems

Heavy aircraft structures—such as primary flight controls, passenger doors, and massive multi-wheel landing gear trucks—require immense physical force to operate. Aircraft use high-pressure hydraulic fluid distribution lines to manage these heavy loads, dividing them into three color-coded independent plumbing reservoirs:

Fuel Capacity and Weight Management

The fuel storage tanks are built directly into the wet-wing boxes and the horizontal tail stabilizers to optimize weight distribution. The main wings feature six separate storage partitions alongside two dedicated engine-feed tanks, while the tail trim tank is divided into two separate zones.

This network holds up to 320,000 liters (82,000 gallons) of aviation fuel, which provides enough energy to sustain continuous flight operations for 17.4 hours. To initialize a long-haul flight path at maximum capacity, filling the tanks costs approximately $170,000.

Avionics Architecture and Antenna Arrays

The nose landing gear assembly is steered from the cockpit via automated hydraulic lines, turning up to 90 degrees to both the left and right to allow tight maneuvers on airport taxiways. The protective fiberglass nose cone (radome) houses three vital navigation and sensor arrays:

• Multi-Scan Weather Radar: Continuously scans the air ahead to detect moisture density, alerting the crew to severe turbulence or convective storm cells along their flight path.
• Localizer Antenna: A critical piece of the Instrument Landing System (ILS). It tracks radio beams from the runway to keep the aircraft centered on the runway centerline during zero-visibility approaches.
• Glide Slope Antenna: Works alongside the localizer to monitor vertical descent paths, guiding the pilots down a safe approach angle to the runway touchdown zone.

To maintain constant voice and tracking links with global air traffic control networks, multiple specialized antennas are mounted along the upper surface of the fuselage:

• VHF Communication Antenna: Transmits and receives crisp voice signals across standard aviation very-high-frequency bands ranging from 118 to 156 megahertz (MHz).
• ADF Antenna (Automatic Direction Finder): An essential navigation utility that automatically calculates and displays the relative bearing of the aircraft toward ground-based AM radio beacons.
• ELT Antenna (Emergency Locator Transmitter): A critical safety device engineered to automatically broadcast localized distress coordinates across international emergency frequencies (121.5 MHz and 243 MHz) if the airframe experiences a sudden, high-impact force.

Human Factors and Core Operational Security Standards

Beyond its complex electrical and mechanical hardware components, commercial aviation relies on proven human factors and exterior design standards to guarantee safety across every flight lifecycle:

The Thermodynamics of White Exterior Paint

The vast majority of commercial aircraft feature a unified white base paint scheme. This design choice is driven by thermodynamics rather than aesthetics. White surfaces reflect the maximum amount of solar radiation, minimizing thermal absorption while the aircraft sits on the hot tarmac. This reflection helps preserve delicate composite components from long-term UV damage while reducing the energy needed to run the air conditioning systems inside the cabin.

The Necessity of a Dual-Pilot Flight Deck

Commercial airliners are legally mandated to operate with at least two qualified pilots at the controls to provide human redundancy. If one pilot experiences an unexpected medical issue or suffers cognitive overload, the second aviator maintains full command of the aircraft.

To manage workloads smoothly, duties are divided into two distinct roles: the **Pilot Flying (PF)** and the **Pilot Monitoring (PM)**. While the Pilot Flying handles manual controls or manages autopilot headings, the Pilot Monitoring cross-checks airspeed data, monitors altitude parameters, manages checklists, and handles all communication with Air Traffic Control (ATC), ensuring a safe, highly coordinated operating environment.
